UV 12 gpm UV Water Sterilizer

UV 12 Filter System

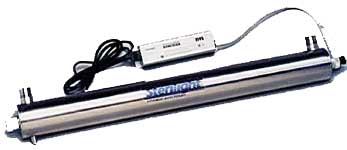

The new S12Q-PA ultraviolet sterilizers are specifically designed for both residential and commercial/industrial applications requiring a 99.99% reduction of bacteria, virus and protozoan cysts (specifically Giardia lamblia and cryptosporidium).

These units feature a separate reactor vessel which can be mounted in any orientation with the supplied mounting clamps. Our new electronic ICE ballast provides constant current over the entire input line voltage and is not affected by line frequency variations. This results in optimum UV output, increased ballast life, increased energy efficiency, crest factor control and a unit that is CE compliant due to the built-in EMI/RFI filtering that compensated for radiated emissions & conducted interference.

This process is accomplished without adding any potentially harmful chemicals to your drinking water. These designs allows for easy homeowner maintenance. The UV lamp can be changed without interrupting the water flow. The quartz sleeve design allows for maximum UV output and operating efficiency. For Indoor Use Only.

Features:

• 13 gpm flow rate at a UV dose of 30 mJ/cm2 (call us for alternate flow rates at varying dosages)
• NEW electronic "ICE" ballast featuring open loop current control (patent pending), ballast features IEC connector, audible alarm & power-on indicator
• Hard glass, low pressure mercury vapor lamps with high isolation pin design
• NEW 1" MNPT / 3/4" FNPT "combination" fittings for installation flexibility
• Quick-lock molded lamp connector
• Compact design incorporating 304 stainless steel reactor chambers, brilliantly polished for laboratory or medical applications
• Easy servicing - no need to disconnect water flow to change UV lamp
• Open end quartz sleeves and aluminum gland nuts for optimum operating temperature and sealing efficiency
• 99.99% destruction of bacteria, virus, and protozoan cysts (Giardia lamblia & cryptosporidium) at rated flow
• Natures way to protect your water without the addition of harmful chemicals
• Includes mounting clamps
• Drain port for reactor chamber flushing
• 7 year warranty on reactor chamber for unparalleled protection
• Product certified by CSA (C US) and CE
• Product Manual

Installation Procedure

1. Note the direction of the water flow in the supply line to which the unit is being connected (Left to Right).

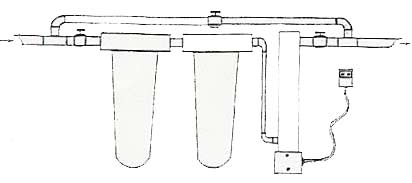

2. Refer to the appropriate plumbing diagram and check to see that you have all the necessary fittings.

3. Shut off main water supply valve.

4. Fasten unit to the wall using the screws provided.

5. Install new plumbing as per diagram. If you are installing a flow control or pre filters, make sure the arrows on them point in the same direction as the water flow.

6. When plumbing new plumbing has been installed, a seal should be attached to the closed by-pass valve. This seal should not be broken unless water is required during emergency or shut-down periods.

7. Plug power cord into the appropriate power source outlet (power source voltage may vary depending on location.

8. Open main valve to water source.

9. Open valve on either side of the sterilizer. (By-pass valve should remain closed) You should hear a sudden rush of water entering the unit at this time. Turn off any faucet that will start the flow of water through the unit.

Warranty:

The S12Q-PA water disinfection systems carry a seven year warranty on the stainless steel reactor chamber, a one year warranty on UV lamps, and a five year pro rated warranty on all other components.

Specifications:
